Product Nerves & Bones
.png)

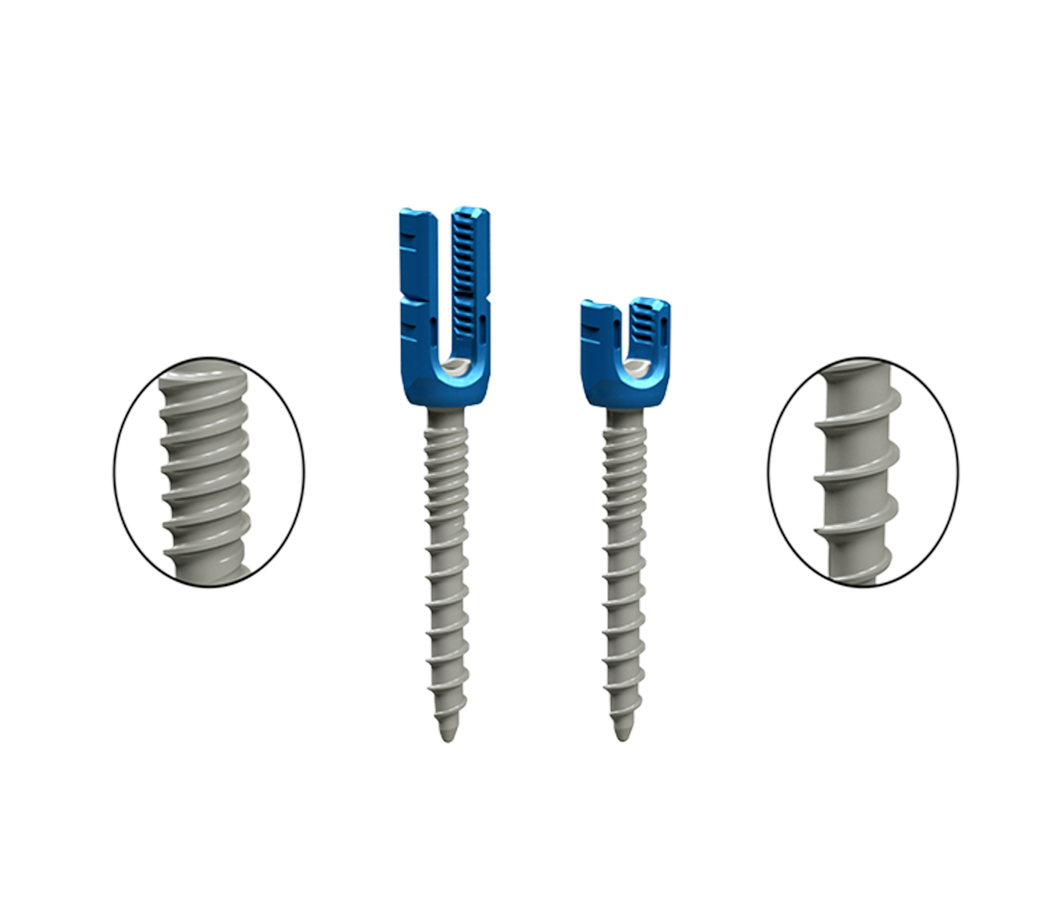

AccelFix-S Lumbar Spinal Fixation Screw System is made for a Ø5.5mm Rod as an open lumbar screw system. The system features a lower profile tulip and enhanced dual-threaded shanks to make insertion easier and faster.
AccelFix-S screws are available in a variety of sizes and come as regular poly-axial, reduction poly-axial, or mono-axial
- Dual-threading for cortical & cancellous bone
- Lower profile tulip with dual-threaded screws
- Deformity solutions available upon request

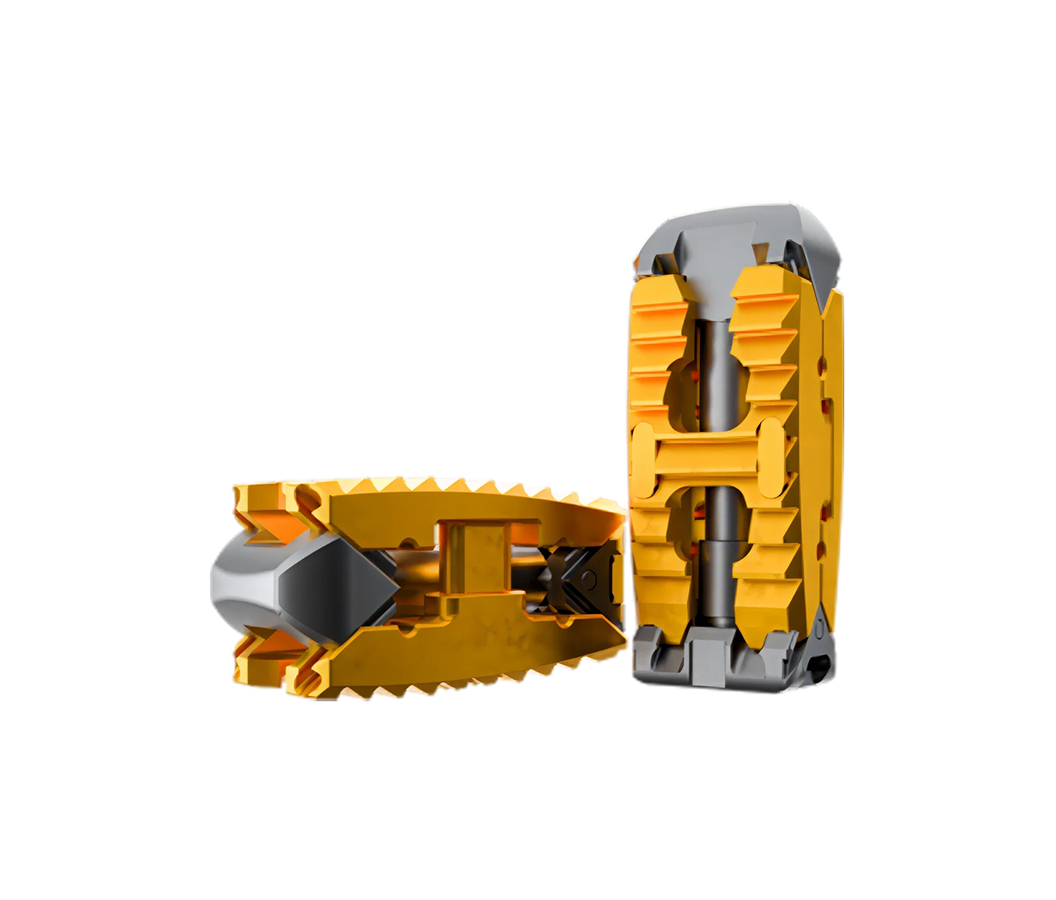

PathLoc-TM Expandable TLIF/PLIF Cage System is composed of titanium alloy which helps to restore disc height, segmental lordosis, and stability, while offering a customized fit for each patient’s unique anatomy.
PathLoc-TM have starting heights of 8, 10, and 12mm, with capability of expanding up to 4mm in height. To offer a more customized fit for each patient, PathLoc-TM cages are available in lordosis of 0°, 4°, 8°, 12°, 15° and 20°.
Additionally, a unique inserter/expander with height expansion indicator allows for confirmation of height expansion. When used with the torque-limiting handle, it helps mitigate over-distraction or endplate violation.
- The H-shape endplate enables the bone graft to be placed between spine endplate and the implant during post bone packing
- Implants are available in sterile packaging to reduce surgical site infection risk, eliminate back table clutter
.png)

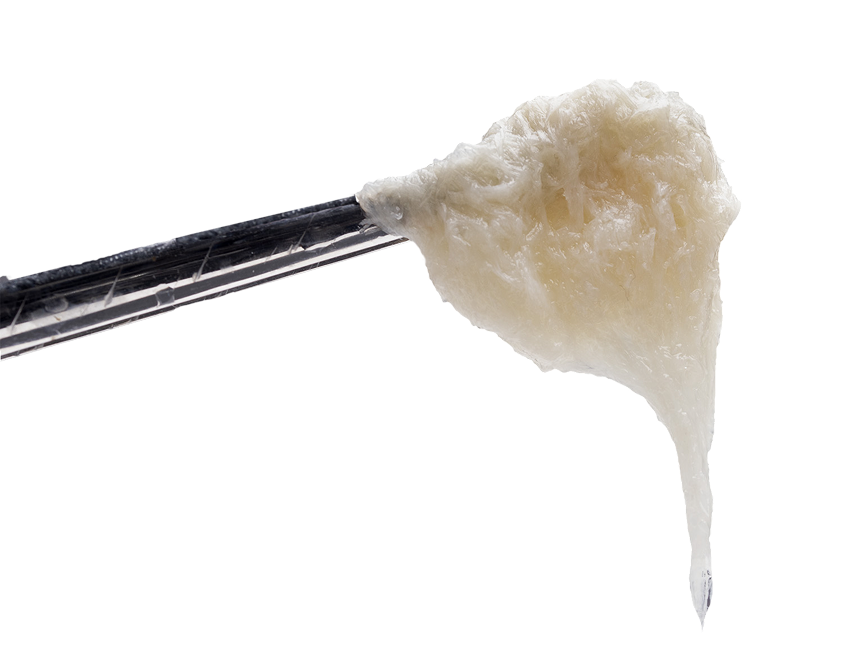

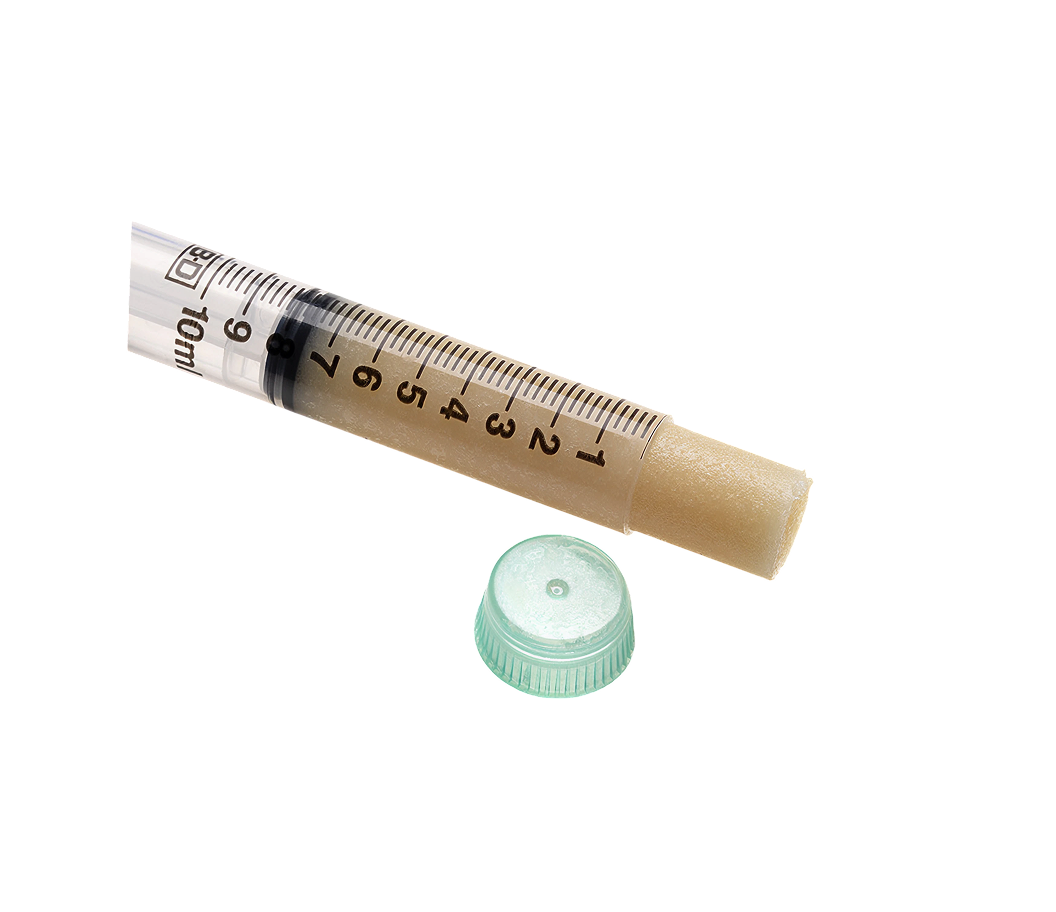

H-GENIN Putty is intended for use as a demineralized bone matrix for voids or gaps that are not intrinsic to the stability of the bony structure. Putty is indicated for the treatment of surgically created bone defects or bone defects created from traumatic injury.
H-GENIN Putty provides a moldable consistency and can be mixed with blood or bone marrow. H-GENIN Putty is used as a bone void filler or extender in posterolateral fusion procedures. The Putty has excellent handling characteristics and resists washing away when irrigated.
- Made from 100% demineralized human bone
- Osteoconductive: provides an ideal scaffold that directs and supports bone formation
- Osteoinductive potential
- Excellent handling characteristics: shapes and conforms to fill bone voids, and retains shape
- Easy storage and use: ambient room temperature and ready for immediate use, no prep time or reconstitution required
- Sterile: Sterility assurance level (SAL) 10⁻⁶
.png)
H-GENIN Crush-Mix is intended for use as a demineralized bone matrix for voids or gaps that are not intrinsic to the stability of the bony structure. Putty is indicated for the treatment of surgically created bone defects or bone defects created from traumatic injury.
H-GENIN Crush-Mix provides a moldable consistency and can be mixed with blood or bone marrow. H-GENIN Crush-Mix is used as a bone void filler or extender in posterolateral fusion procedures. The Putty has excellent handling characteristics and resists washing away when irrigated.
- Made from 100% demineralized human bone with cancellous bone chips
- Osteoconductive: provides an ideal scaffold that directs and supports bone formation
- Osteoinductive potential
- Excellent handling characteristics: shapes and conforms to fill bone voids, and retains shape
- Easy storage and use: ambient room temperature and ready for immediate use, no prep time or reconstitution required
- Sterile: Sterility assurance level (SAL) 10⁻⁶

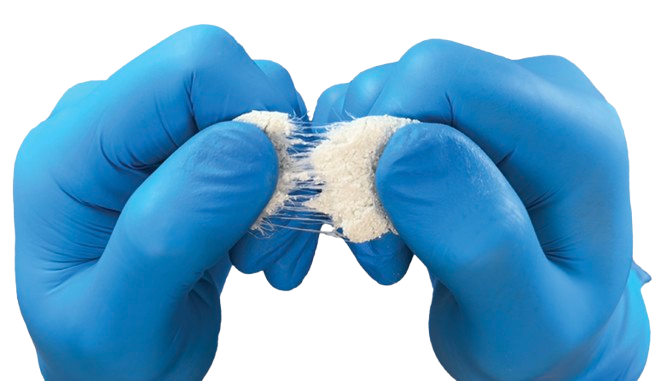

DCF Strips are unique and versatile bone void fillers comprised of 100% demineralized cortical bone with putty-like handling characteristics. DCF can be rehydrated with BMA, PRP, whole blood, or saline. Once hydrated, the pliable fibers provide excellent moldability and handling characteristics.
- Excellent handling properties, moldable and resistant to irrigation
- The increased surface area provides an optimal scaffold for cellular attachment and proliferation
- Contains no fillers or carriers
- 100% demineralized allograft bone, no carrier
- Moldable and irrigation resistant
- Osteoconductive with osteoinductive potential
- Sterile: Sterility assurance level (SAL) 10⁻⁶
.png)

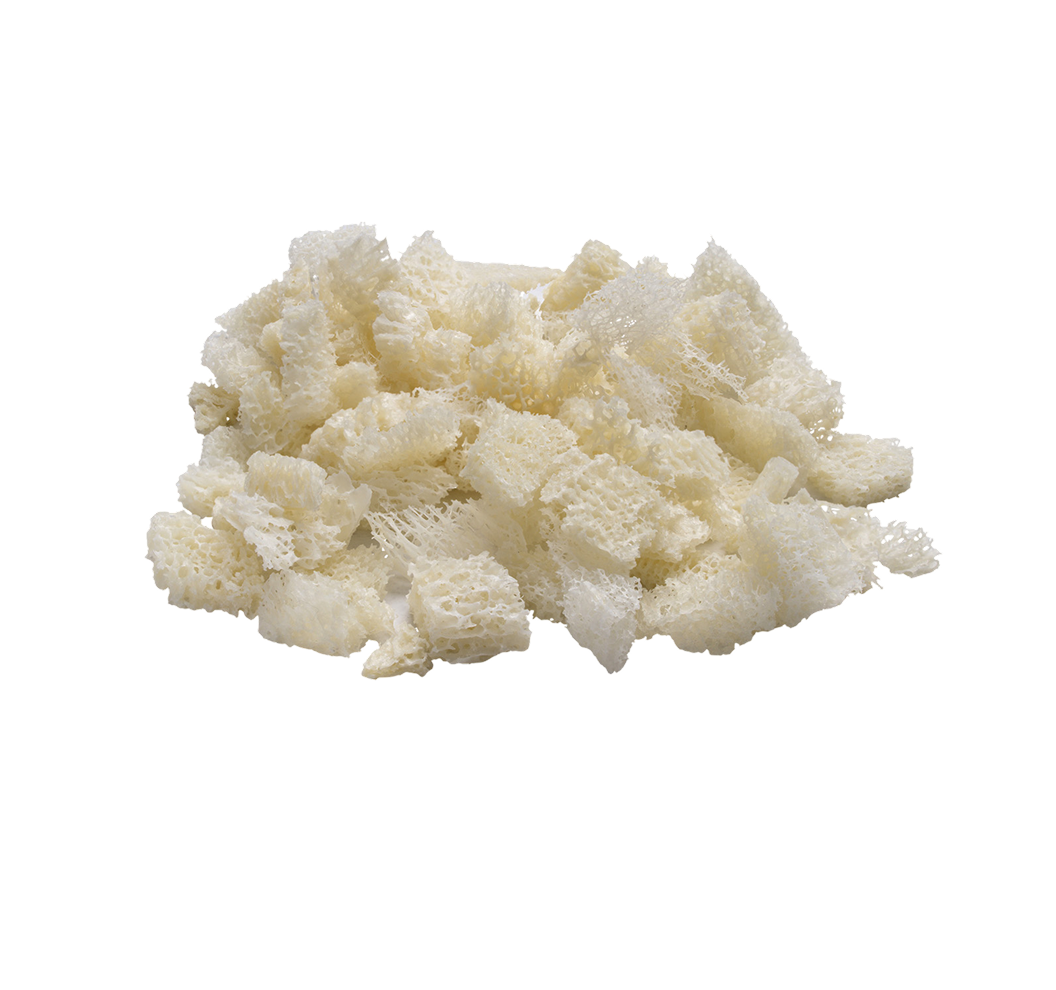

Cancellous bone has higher osteogenic and osteoinductive properties than cortical bone. The structure of cancellous bone allows rapid revascularization of the graft. As a bone void filler, cancellous chips are also capable of providing an osteoconductive matrix.
Cancellous chips available in various particle size ranges (0.5 – 1mm, 1 – 4mm, and 4 – 10mm) and fill sizes (0.5, 1, 2.5, 5, 10, 15, 30, and 60cc).
Cortical/cancellous chips available in particle size 0.5 – 1mm and fill sizes 0.5, 1, and 2cc with a 1:1 mix of cancellous and cortical chips by volume.
.png)

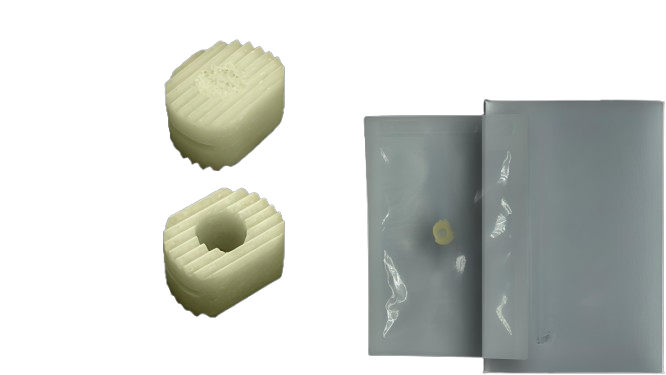

A monolithic cortical structure with an open graft window or cancellous plug, designed for use in Anterior Cervical Discectomy and Fusion (ACDF) procedures.
- Surface serration helps minimize the risk of implant migration and displacement
- Machined to precise dimensions for consistent fit and functionality
- Chamfered leading edge for ease of insertion
- Packaged in saline
- 100% cortical bone
- Relatively large footprint: 11 x 14mm
- Available in heights: 5, 6, 7, 8, 9, and 10mm
- Available in 7° lordosis
- Anti-migration serration
- Available with open graft window or with cancellous plug
- Sterile: Sterility assurance level (SAL) 10⁻⁶

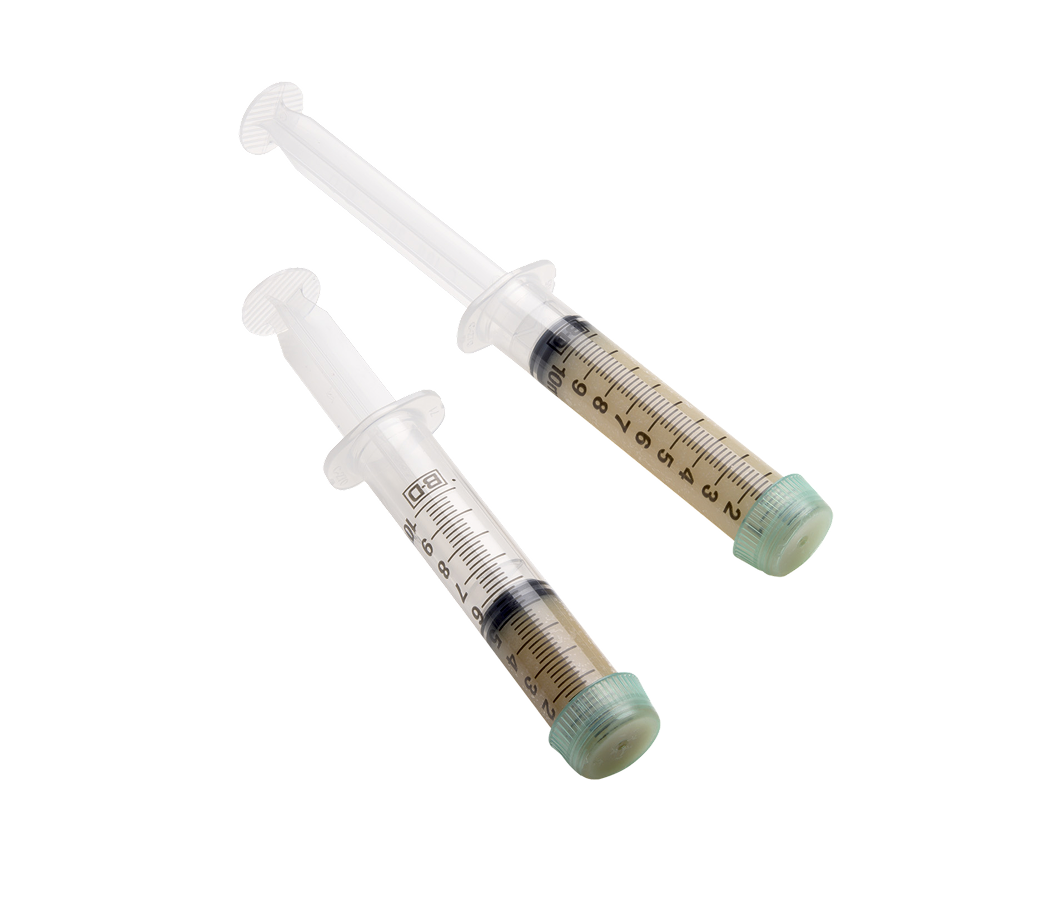

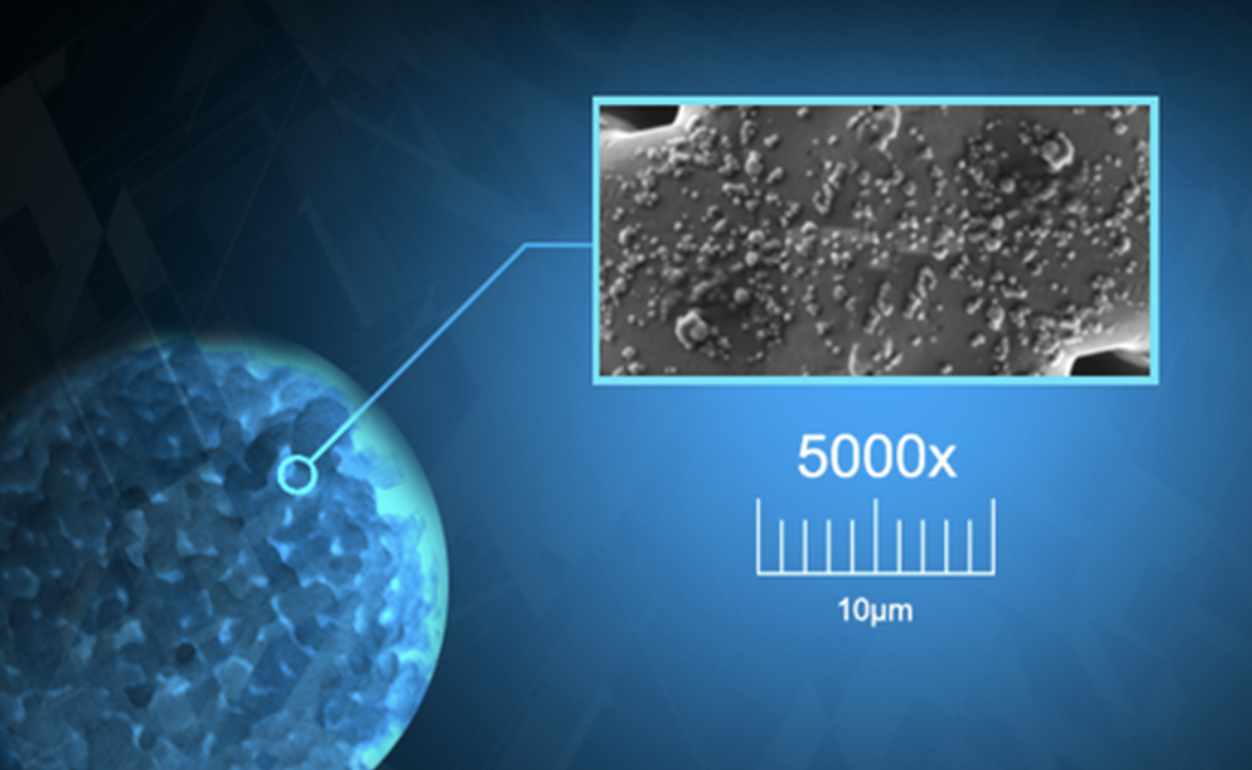

Syntetic Bone Graft with Nano Surface tecnology OsteoFlo NanoPutty is a proprietary all-in-one combination of biomaterials with nano-surface technology to optimize and sustain bone growth. Its quadphasic particles, composed of HA, Bioactive Glass, β-TCP, and α-TCP, provide a unique blend to optimize structure and growth, closely mimicking natural bone.
- Each quadphasic particle is composed of HA (hydroxyapatite), Bioactive Glass, β-TCP (Beta-tricalcium phosphate) & α-TCP (Alpha-tricalcium phosphate).
- Nano-surface technology stimulates cellular activity and osseointegration.
- Quadphasic particles allow for the controlled resorption profile of each particle.
- GLP studies have demonstrated increased effectiveness over market leading bioglass putty.
- Flowable putty great for filling tight spaces/voids.
- Highly formable and moldable.
- No sticky residue.
- Comes in a syringe or preloaded cartridge.
- Does not require any mixing, additives or other treatments prior to use.
- Doesn’t wash away under irrigation.
- Radiopaque under fluoroscopy.
OsteoFlo Hydro Putty is a propriatery hydrophilic synthetic bone graft utilizing a unique blend of biomaterials to optimize bone growth
- Comprised of porous carbonated apatite granules and bioglass, in a synthetic polymer binder
- Provides a bone void filler that is resorbed and replaced with host bone during the healing process
- Hydrophilic carrier bonds allow for absorption
- Mixes seamlessly with autograft or allograft
- Flowable, great for filling tight spaces/voids
- Easily packed into osseous defects
- Highly formable and moldable
- Smooth handling and consistency
- Strong biocompatibility
OsteoFlo HydroFiber is a stand-alone proprietary hydrophilic synthetic bone graft that utilizes a unique blend of biomaterials and fibers. When hydrated, its interwoven porous synthetic particles form a cohesive structure with enhanced handling and effective integration. It is indicated for Spine, Cysts, Tumors, Osteomyelitis, and Trauma, optimizing bone growth.
- May be mixed with saline, blood,bone marrow aspirate,or autograft if deemed necessary
- Providesasynthetic bone graft that is resorbed and replaced with host bone during the healing process
- May be used to fill interbody cages
- FDAcleared equivalent to autograft
- Controlled expansion
- Flowable, great for filling tight spaces/voids
- Easily packed into osseousdefects
- Highly customizable,formable and moldable
- Smooth handling and consistency
- Strong biocompatibility
- May be used with GraftGun

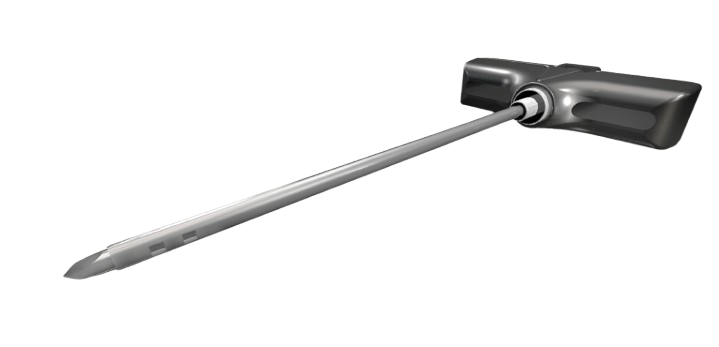

Filtration Technology enables the aspiration of high-quality bone marrow without contaminants or peripheral blood, eliminating the need for additional bone marrow aspirate filters. Cellect Filtration ensures optimal cell viability in a single step, with no centrifuge required, and is compatible with neuro monitoring.
- Single step
- No stylet switches required during the procedure
- Less stopping points when drawing
- Decrease procedure time
- Proprietary distal tip filter integrated
- 6 vertical apertures radially around the cannula
- No centrifuge necessary
- Eliminate bone fragments and peripheral blood
- Reduce need for additional filtration or centrifugation
- Potential to accelerate healing
- Increased concentration of BMA
- Enhanced cell viability
.png)

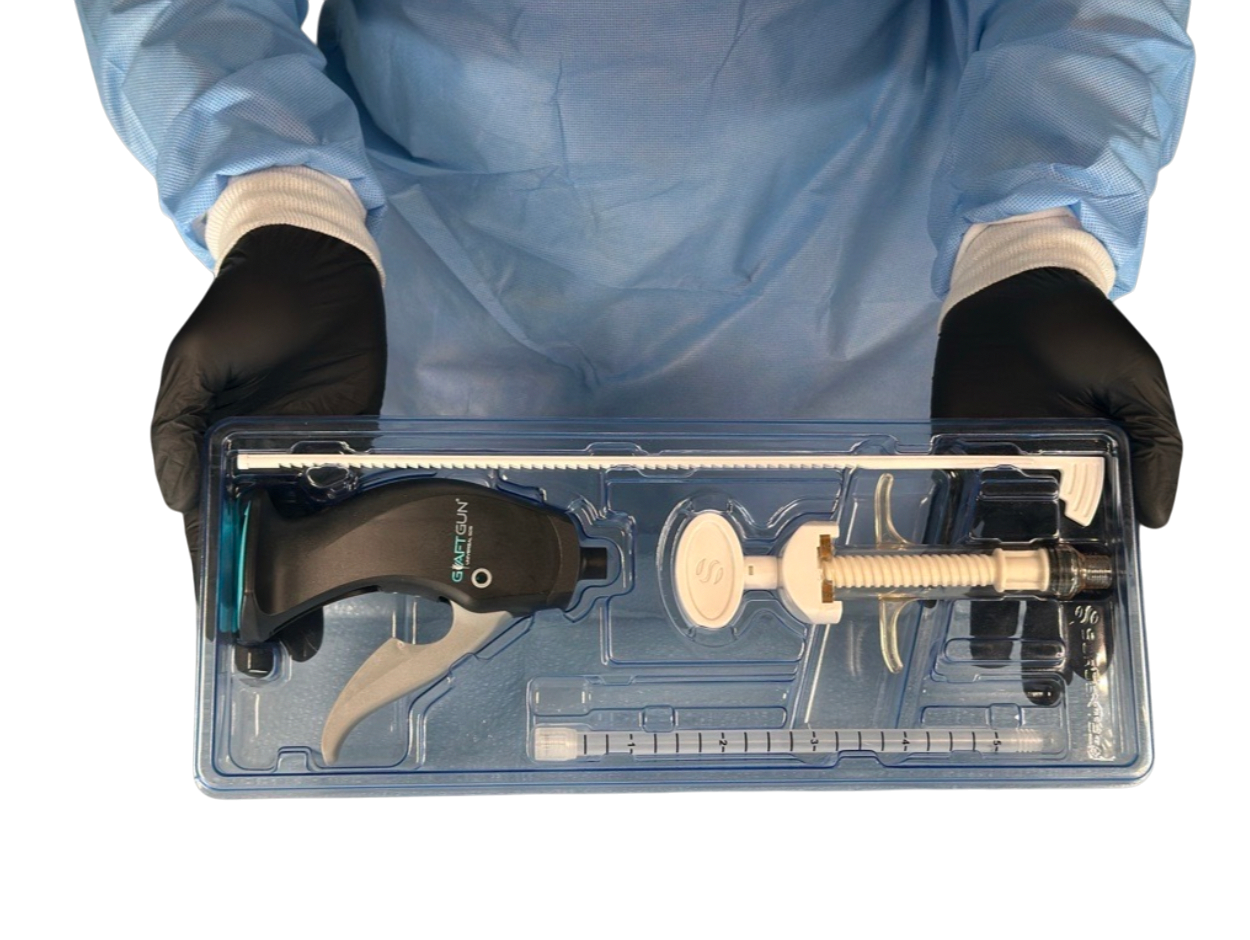

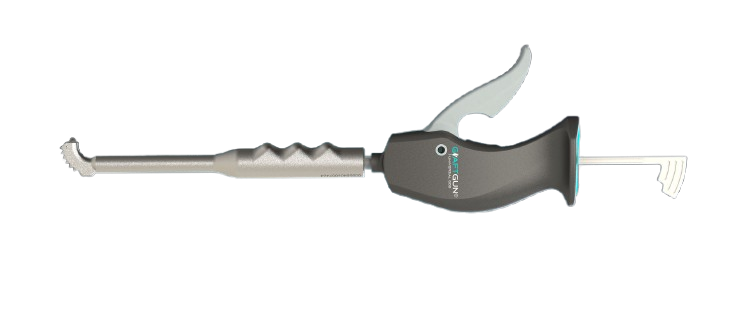

Our Graft Delivery System (GDS®) is engineered for universal, quick, and accurate bone graft delivery to a surgical site without the problems of a traditional funnel. Our patented, controlled-release method produces enough pressure to safely fill bone voids. The GraftGun includes SurGenTec's loading device technology, which provides surgeons the freedom to choose the bone graft that best suits their needs. Additionally, the optional preloaded tubes can reduce operating room time, handling, and mitigate cross contamination.
- Tactile feedback when filling void.
- Single-handed operation.
- Offers reproducible delivery of an orthobiologic.
- Optional distal tip adapters are available for use when post-filling tight spaces.
- No impacting to deploy graft.
- Every squeeze of the GraftGun's trigger delivers .25cc of orthobiologic.
- Custom adapter tips are available to mate up to interbody cages.
- Single-use / disposable peel-pack - ensures sterility and eliminates reprocessing costs.
Preloaded bone graft tubes with GraftGun:
- ViMax fiber cellular matrix
- Ossify DBM putty
- Ossify cortical fibers
- OsteoFlo synthetic quadphasic NanoPutty
- Provides Surgeons the freedom to chose bone graft suitable to their needs
- Optional tips allow for filling tight places
Cannulated Rasp for Decortication, allows surgeon to deocrticate and delive grafts with same instrument.
- Cannulated rasp allows for bony decortication and simultaneous bone graft delivery to a desired location
- Ergonomic handle for stability and tactile feedback
- Indicator at top of handle pointing to rasp tip
- Precision machined disposable rasp teeth to ensure optimal decortication every case
- Pyramidal teeth design strategically placed to maximize rasping without clogging
- Effective in open or minimally invasive procedures
- May be used with the GraftGun for controlled and precise bone graft delivery
Designs Two rasp designs to choose from depending on anatomy:
Straight
- The graft aperture is located at bottom of rasp foot
plate so graft is delivered the rasp. - Bulleted tip for easier movement through tissue
- Straight pusher is provided to expel remaining bone graft in rasp
Curved
- The graft aperature is at the distal tip facing forward to expel graft in a horizontal plane
- Curved for easy access to adjacent locations
- Bulleted tip for easier movement through tissue
- Curved pusher is provided to expel any remaining bone graft in rasp.
Micro Nanotex Facet Joint Implant, MISS imp-lant for spine stabilization and pain reduction, ION 3D is available in a range of sizes
to offer tailored solutions for diverse anatomies.
- Wide thread pitch to help resist migration
- Windows designed to enhance bone in growth and integration
- Tapered tip for ease of insertion

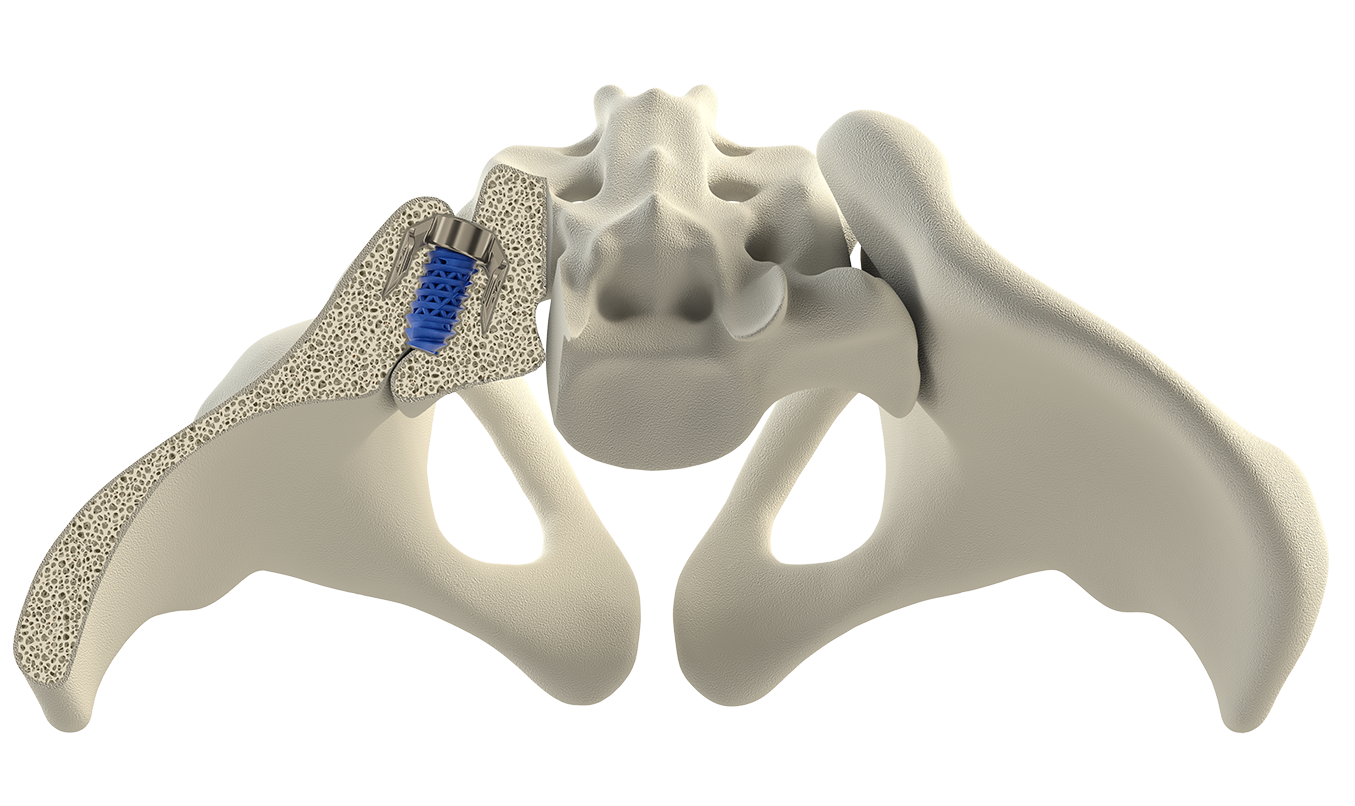

Our innovative SI Fusion System is intelligently engineered to transfix and compress the sacroiliac joint with a simple, minimally invasive Implant. TILINK-P offers a true posterior approach with minimal instruments, utilizing one incision.
- Nanotex® Surface Technology
The hydrophilic surface created by Nanotex® attracts and holds BMA & other fluids that may contain key growth factors. - Innovative Window Design
Large lateral window openings help promote bony ingrowth. - Novel Compression Anchor
The novel bevel anchor design creates significant compression as it's inserted across the joint. - Bone Ingrowth Windows
Anchor wings contain bony ingrowth windows for potential points of fusion. - Increased Fusion Potential
Increased fusion opportunity with a large volume of biologic space in and around screw. - Resists All Biomechanical Forces
Biomechanical analysis of the novel anchor and screw design shows resistance to all possible motion of the SI joint. Those forces include shear, nutation, ounternutation, compression, and distraction.
TILINK-L SI Fusion System is intuitively engineered to help compress the sacroiliac joint and provide an optimal platform for fusion. TILINK-L has capabilities to accomplish both lateral or posterior oblique approaches.
- Harvesting channel collects autograft.
- Nanotex technology.
- Self Tapping tip.
- Bone growth windows.
- Cannulated Screw
